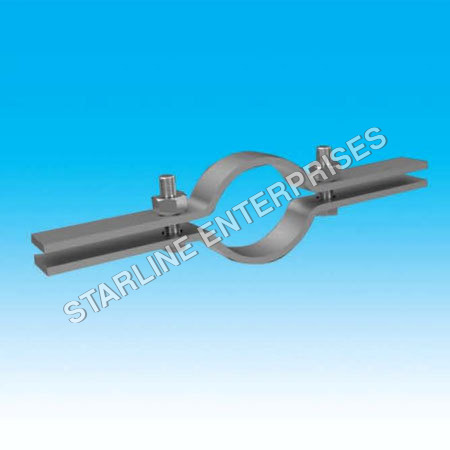

Riser Clamp

Riser Clamp
Riser Clamp
Product Code : 14
Trade Information
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Piece/Pieces
  • FOB Port
  • Thrissur - Kerala
  • Payment Terms
  • Cheque, Others
  • Supply Ability
  • 2000 Pieces Per Month
  • Delivery Time
  • 30 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Standard Packaging
  • Main Domestic Market
  • Kerala
  • Certifications
  • ISO 9001 : 2008
Product Description

Since our establishment, we are affianced in manufacturing and exporting a huge gamut of Riser Clamp. It is widely used to provide support to the vertical running of pipes. Under the strict guidance of our experts, this unit is precisely manufactured using the optimum quality materials. In addition, this Riser Clamp can be availed from us at most reasonable prices.

Features:

  • Easy to use
  • Rust resistant body
  • Accurate in dimensions

 Riser Clamp

Selection Table (Table NO: B-17-01)

Part No.

Pipe size

Length (L)

Metal size(mm) E

Bolt size

Max load kgs

SRC 022

1/2”

200

4x25

M10

80

SRC 028

3/4”

210

4x25

M10

90

SRC 035

1”

230

4x25

M10

100

SRC 040

1 1/4”

260

4x25

M10

120

SRC 048

1 1/2”

260

4x25

M10

120

SRC 060

2”

260

4x25

M10

150

SRC 075

2 1/2”

290

4x38

M12

200

SRC 090

3”

290

4x38

M12

250

SRC 100

3 1/2”

330

4x38

M12

350

SRC 115

4”

350

4x38

M12

350

SRC 140

5”

350

6x38

M16

550

SRC 168

6”

380

6x38

M16

700

SRC 220

8”

470

8x38

M16

900

SRC 273

10”

520

10x50

M16

1100

SRC 323

12”

580

12x50

M20

1100

SRC 355

14”

610

12x50

M20

1600

SRC 406

16”

660

16x60

M20

1600

SRC 457

18”

710

16x60

M20

1900

SRC 508

20”

760

16x60

M20

1900

SRC 610

24”

880

16x75

M20

2400

SRC 762

30”

1040

16x75

M20

2400

SRC 915

36”

1210

16x100

M25

3200

1. Compliance:

   (a)  Federal Specification AS-A-1192 (Type 1)
   (b)  MSS-SP58 (Type 1)
   (c)  MSS-SP69
   (d)  WW-H-171E (Type 1)
   (e)  G-ASTMB 633 SC3, BS 1706 FE / ZN 12

2. Material:
Mild Steel Electro galvanised.
3. Application:
Guide and provide rigid support and ensuring stability under large lateral load for all types of vertical piping.
4. Features:
When used as pipe guides, lateral stability is ensured while permitting axial thermal expansion / contraction.
5. Selection / Ordering:

  (a) Pipe OD and material plus insulation thickness.
  (b) Hot Dip Galvanised Finish (Suffix “HDG”)
  (c) EPDM Lined (Suffix “R”)
  (d) Epoxy Powder Coated Finish (Suffix “P”)
  (e) Stainless Steel Construction (Suffix “SS”)

Note:

  • Due to policy of continual improvement, the specifications are subject to change without prior notice
  • Measurements are subject to 5% tolerance
