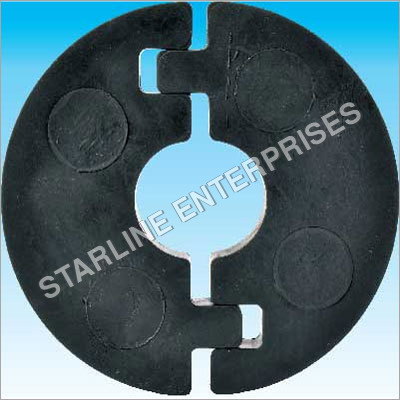

Rubber Support Insert

Rubber Support Insert
Rubber Support Insert
Product Code : 15
Price And Quantity
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Piece/Pieces
Product Description

Keeping pace of industry developments, we manufacture and export an extensive gamut of Rubber Support Insert. Easy to fit with pipe systems, this is used for preventing crushing of insulation. It is manufactured using optimum materials under the guidance of our adroit team in accordance with set industry standards. Also, this is also tested on numerous quality parameters prior to dispatch at user’s end. Our valued clients can avail this Rubber Support Insert from us at marginal prices.

Features:

  • Optimum strength
  • Smooth texture
  • Abrasion resistance


Rubber Support Insert

TEST STANDARDS (Table NO: B-14-01)

SI. No

Physical Properties

Test Standard

Unit

Specification

01

Hardness

ISO 7619

Shore A

85+/3

02

Specific Gravity


G/cm3

(13+/0.1)

03

Tear Strength

ASTM D 624

Kgs/cm

22 min

04

Applicable Temp

Range 30 deg to 80 deg

05

Other Properties

Excellent resistance to water mild acid and alkalis

06

Tensile Strength

ISO 37

Kgs/cm3

52 minium

07

Thermal Conductivity


W/m3C

0.16

  • Optionally 1.6 g/cm3 available on Request.
  • Fire Resistant Grade also available on Request

1. Compliance:
(a) British Standards, BS 3974 : Part I
2. Material :
Compounded Rubber
3. Application
Effective means of preventing crushing of insulation at pipe support points of chilled water, condenser water and domestic hot / cold water installation.
4. Features:

(a) Dimensional accuracy is ensured since each set is individually machine moulded.
(b) Green Product.
(c) Product is extremely rigid. Hence resistant to deterioration over a period of time.
(d) Unlike wood, material is non corrosive.
(e) Lower installation cost due to lack of requirement of additional metal sheets for wider load distribution.
(f) Termite control not required.
(g) Tongue and groove arrangement between RSI inserts saves labour cost and time.
(h) Rubber pipe supports also provide an acoustic barrier against transmission of high frequencies.
(i)  Rubber support inserts are available for all pipe size and insulation thickness and are integrated with our various type of pipe supports to ensure fast and quality pipe installation.

6. Selection / Ordering

(a) Nominal pipe size, Pipe OD and insulation thickness.
(b) Refer table for details.

Selection Table (Table NO: B-16-01)

RSI Sizes, Standard Widths

Pipe Size

Standard Width

Steel (Nominal)

Copper (OD)


16 mm

25 mm

1/2”

22 mm

25 mm

3/4”

28 mm

25 mm

1”

35 mm

25 mm

1 1/4”

42 mm

25 mm

1 1/2”


25 mm


54 mm

25 mm

2”


25 mm


67 mm

25 mm


73 mm

38 mm

212”

76 mm

38 mm


80 mm

38 mm

3”


38 mm


105 mm

38 mm


108 mm

38 mm

4”


38 mm

5”

140 mm

38 mm


156 mm

38 mm


159 mm

38 mm

6”


50 mm


168 mm

50 mm

8”

219 mm

50 mm

10”


50 mm

12”


50 mm

14”


50 mm

16”


75 mm

18”


75 mm

20”


100 mm

24”


100 mm

30”


100 mm

36”


100 mm

40”


100 mm

Note:

  • Due to policy of continual improvement the specification are subject to change without prior notice.
  • Measurements are subject to 5% tolerance.
  • To achieve good sound suppression, do not overload fitting.

Trade Information
  • FOB Port
  • Thrissur - Kerala
  • Payment Terms
  • Cheque, Others
  • Supply Ability
  • 2000 Pieces Per Month
  • Delivery Time
  • 30 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Standard Packaging
  • Main Domestic Market
  • Kerala
  • Certifications
  • ISO 9001 : 2008
