Spring Hanger

Spring Hanger
Spring Hanger
Product Code : 06
Price And Quantity
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Piece/Pieces
Product Description

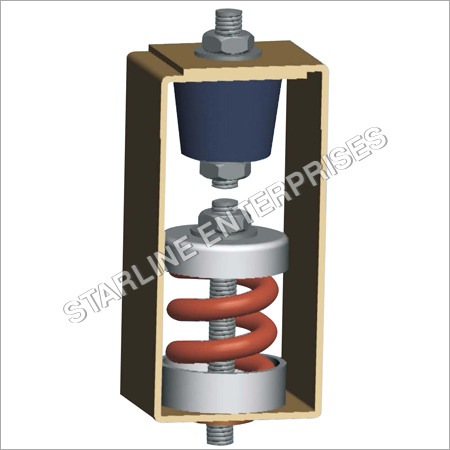

Spring Hanger

We have achieved a strong reputation in the market by manufacturing and exporting broad range of Spring Hanger. This is manufactured using optimum grade materials under the stern observation of our deft team of experts. It is used in heavy rotating equipments like air handling units, fan coil units, air volume boxes, ventilation fans, pipes and air ducts. Also, this Spring Hanger is examined on diverse quality parameters to ensure their durability and perfect finish at clients’ end.

Features:

  • Elevated durability
  • Robust construction
  • Seamless finish


1.Compliance:

(a) Designed to BS 1726 -1 : 1987
(b) Tolerance to BS 1726-1 : 2002
(c) SAE and Ashrae Guidelines for Vibration Isolation

2. Application:

(a) Generally used for suspension of heavy rotating equipment, for example Air Handling Units, Fan Coil Units, Ventilation Fans, Large Variable Air Volume Boxes, Pipes and air ducts in Mechanical Rooms.
(b) These are highly effective when vibrations of high frequency and large amplitude are present.

3. Product Features:

(a) Double protection against transmission of noise to structures is assured as the neoprene component provides an effective acoustic barrier and the moulded neoprene cup below the spring in prevents metal to spring contact, thus effectively isolating the suspended equipment from the structure.
(b) Spring diameter to height ratios are designed to ensure that spring will never buckle even when fully loaded.
(c) Suspension rod misalignment (30 degree arc) is compensated in hanger design.
(d) Locking rubber bush centralizes the spring and prevents dislocation.
(e) Springs are powder coated with appropriate color coding to facilitate identification.
(f) Frame is made of G.I. steel and powder coated to 100 microns paint thickness (exceeds 1000 hours of salt spray test) and conforming to ASTM B-117.

Options:

1. Frame Hot Dip Galvanised (Prefix Part Number with HDG)
2. Spring Neoprene Coated (Prefix Part Number with N
3. Spring Plastic Coated (Prefix Part Number with P

4. Selection / Ordering:

Point load (Calculated to include all variables such as weight of water in pipe lines etc if applicable).

5. Installation Guide lines:

Included in packaging.

SELECTION TABLE FOR 25 mm DEFLECTION COMBINATION SPRING HANGERS (Table NO: C-19-01)

Isolator Model

Rated Load (kg)

Spring Colours

Dimensions (mm)

L

W

SF

RF

H

D

SCSH-A25

25

Green

77

60

76

39

160

M10

SCSH-A50

50

Black

SCSH-A75

75

Yellow

SCSH-A100

100

Blue

77

60

84

39

160

M10

SCSH-A150

150

Grey

SCSH-A200

200

Orange

SCSH-B200

200

Black

77

60

93

46

190

M 12

SCSH-B250

250

Yellow

SCSH-B300

300

Blue

SCSH-B400

400

Grey

SCSH-C400

400

Brown

94

80

110

73

250

M16

SCSH-C500

500

Grey

SCSH-C600

600

Orange

SCSH-C700

700

Green

94

80

130

73

295

M22

SCSH-C800

800

Pink

SCSH-C1000

1000

White

SCSH-C1200

1200

Purple

  • Represents average free height in each grouping of models. Height of some models in group may vary slightly from this figure.

SELECTION TABLE FOR 50 mm DEFLECTION COMBINATION SPRING HANGERS (Table NO: C-20-01)

Isolator Model

Rated Load (kg)

Spring Colours

Dimensions (mm)

L

W

SF

RF

H

D

SCSH50-B25

25

Green

77

60

118

46

215

M12

SCSH50-B50

50

Red

SCSH50-B75

75

Black

SCSH50-B100

100

Yellow

SCSH50-B150

150

Blue

SCSH50-C200

200

Green

94

80

127

73

270

M16

SCSH50-C250

250

Red

SCSH50-C300

300

Black

94

80

135

73

270

M16

SCSH50-C400

400

Yellow

SCSH50-C500

500

Black/Green

SCSH50-C600

600

Yellow/Green

SCSH50-C700

700

Black

107

95

163

73

315

M20

SCSH50-C800

800

Yellow

SCSH50-C1000

1000

Blue

SCSH50-C1200

1200

Blue/Green

107

95

163

73

335

M24

SCSH50-C1400

1400

Blue/Brown

  • Represents average free height in each grouping of models. Height of some models in group may vary slightly from this figure.
Trade Information
  • FOB Port
  • Thrissur - Kerala
  • Payment Terms
  • Cheque, Others
  • Supply Ability
  • 2000 Pieces Per Month
  • Delivery Time
  • 30 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Standard Packaging
  • Main Domestic Market
  • Kerala
  • Certifications
  • ISO 9001 : 2008
